Camoga C420 R (01.1.01.108.0005)

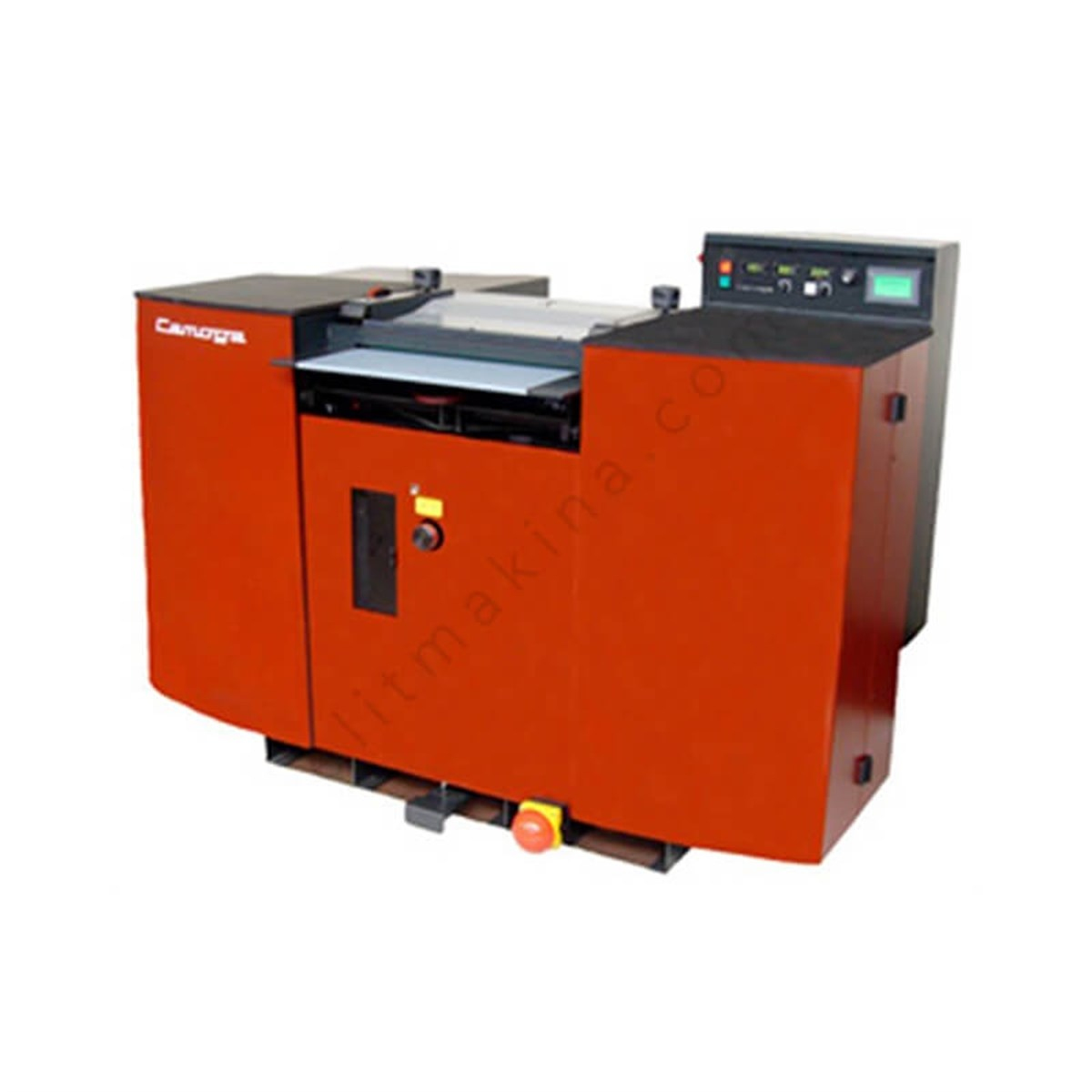

Camoga C420 R Leather Splitting Machine

FEATURES - No knife trend setting • • - Grinding unit suitable: for corundum or diamond wheels • • easy: single micrometric control • • flexible: fast setting of bevel width • • - Guide gibs group with automatic adjustment - Independent exhaustors for emery dust and working scraps - Moving wheel on precision roller guides • • - Working pressure fast adjustment • • - Optical viewer to check bevel symmetry - Digital thickness readout • • - Handbook and service tools - Ergonomic work position to reduce tiredness • • - Safety devices compliance with CE standards - Low noise level - Fast replace- ment Guide Roll/Guide Bar without removing joint • • - Access to all components for an easy and rapid maintenance - Life lubricated mechanical components • • Fetures introduced by Camoga for the first time Model C420 R Feeding Speed 4 Ele-Mec Upper Feeding Standard Toe-Split No Working Pressure Mechanic Alarms Alphanumeric Instructions & Messages Alphanumeric Installed Power 3.0 kW Net Weight 635 kg Gross Weight 817 kg Machine Dimensions (m) 1.6x1.1x1.3 Case Dimesions (m) 1.75x1.2x1.45 Technical Data: Accessories: Equipments: Working Width: 420 mm Max Thickness: 8 mm Min Thickness: 0.6/0.2 mm Knife Dimension: 0.7*50*3500 mm Upper Feed Roll N(8/0.6 mm) Special Up Feed Roll S Rubber Coated Bot Feed Roll Alternative grinding unit: Diam/Corum Mechanical Thickness Gauge Special low friction feed tables Equipment to skive edges of the straps Equipment to skive tip, edges and

Technical Data:

Accessories: Working
Width: 420 mm

Max Thickness: 8 mm

Thickness: 0.6/0.2 mm
Knife Dimension: 0.7*50*3500 mm
Upper Feed Roll:  N(8/0.6 mm)
Special Up Feed Roll S Rubber Coated Bot Feed Roll Alternative grinding unit: Mechanical Thickness Gauge Special low friction feed tables Equipment to skive edges of the straps Equipment to skive tip, edges and back of the belts remover unit for split pieces
