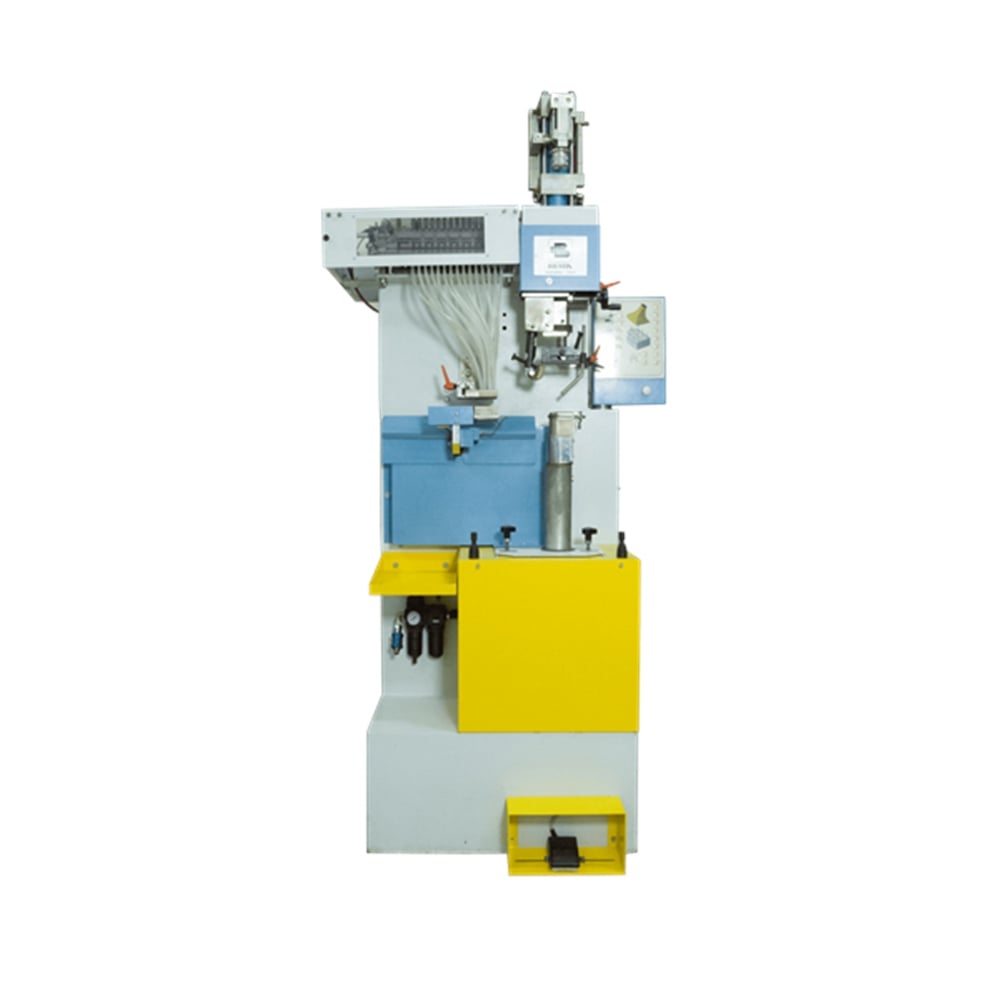

Brustia PTP 3000 Automatic Heel Nailing Machine

Pneumatic automatic electronic heel nailing machine with programmable nailing sequence. Main features: – Fully programmable nailing sequence. – 14 nails plus 2 screws-feeder divided in 6 section. – Movable nailing column for boots. – 7 plus 1 larger cylinder for nailing on very hard materials. – Nailing regulation device. – Quick-change nailing form and pneumatic hold down for high and flat heels. – Automatic nail block release in case of nail jam. – Very quick and silent nailing cycle. – Autodiagnostic for quick trouble-shoothing. – North/South or East/West working position on request.

Technical Data
Dimensions 960 x 106 x 209 (h) cm
Net weight 480 Kg
Work pressure 6 bar
Supply voltage 380 V
Compressed air consumption lt/cy at 6 bar:34
Electrical consumption 120W Daily output pairs :1600
